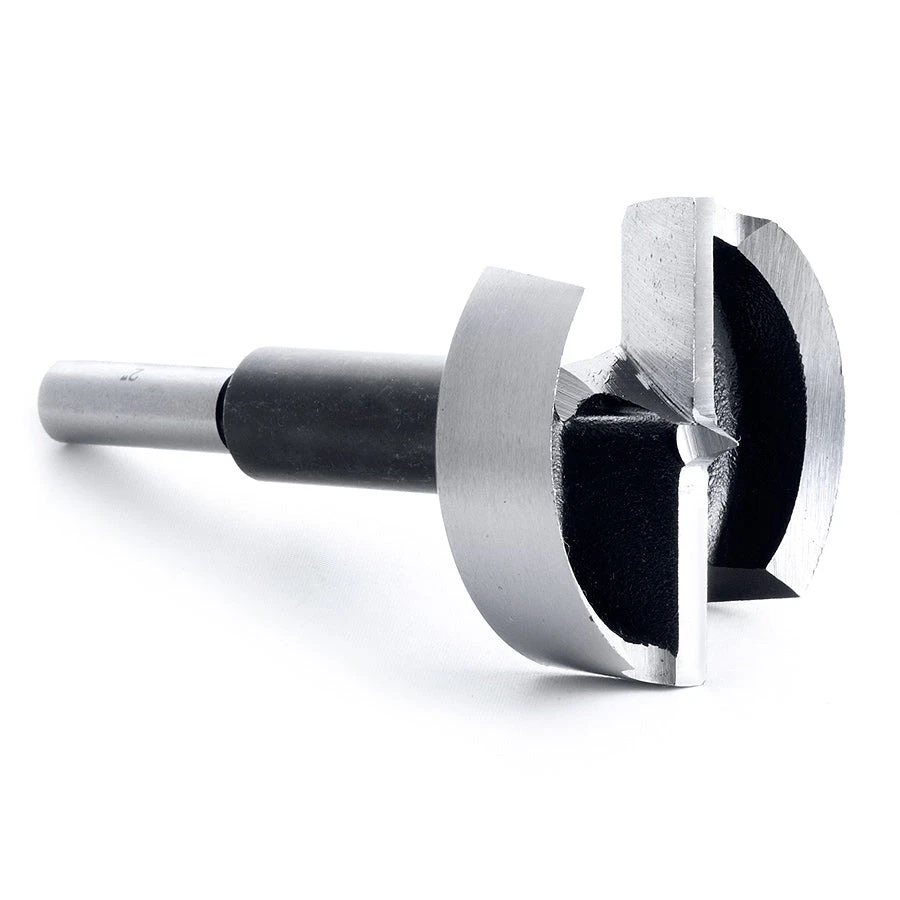

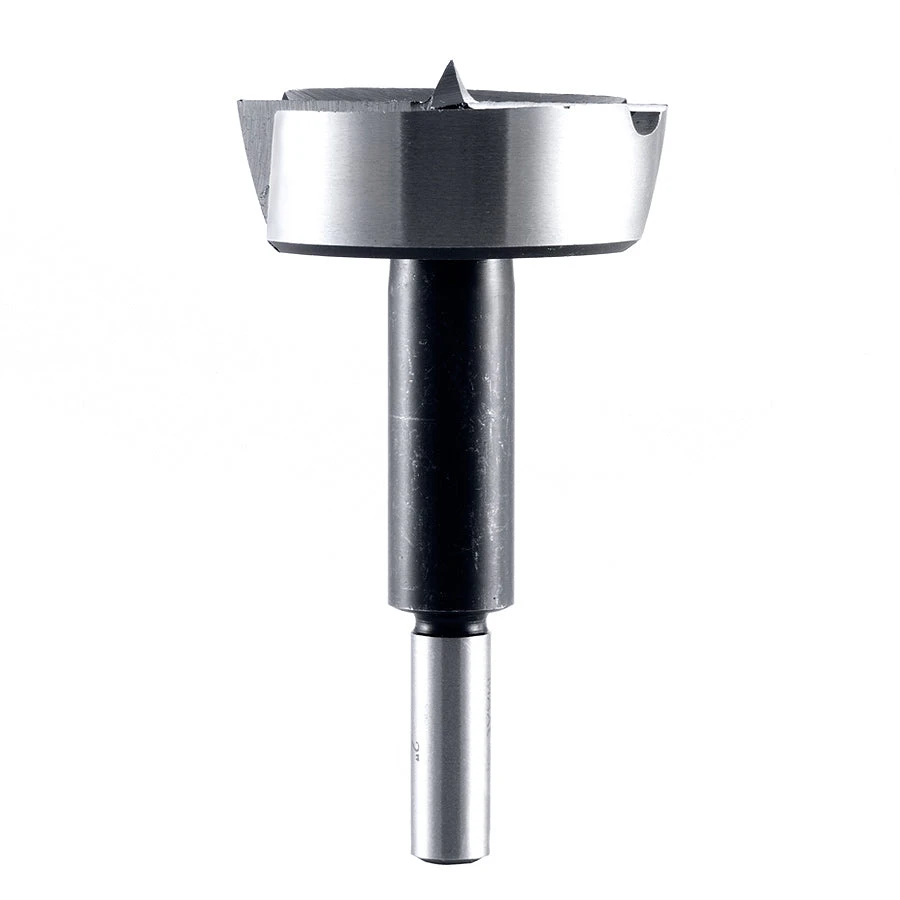

Amana FO-540 Forstner Pattern Bit

Boring & Drilling Bits: Forstner Bits: 2-1/8″ Dia x 3/8″ Shank

Application: Drill pocket-holes, flat-bottom holes*, etc., using any 3/8″ or larger portable drill or stationary drill press. Forstner pattern bits are well known for their ability to drill clean and chip-free holes in wood. Amana Tool uses only the finest quality tool steel, precision machined and ground on state-of-the-art equipment. Large gullets milled in the tool body provide exceptional chip clearance.

Note: A small pilot hole used for centering will be present on flat bottom holes.

Standard Equipment:

• FO-540 Forstner Pattern Bit

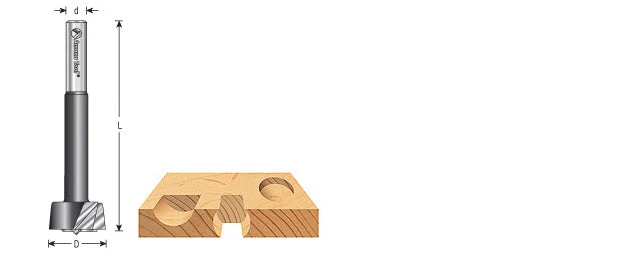

Specifications:

• Diameter (D): 2-1/8″
• Shank (d): 3/8″
• Overall Length (L): 3-1/2″
